MSL’s Yard Built project continues with 3D modelling at Evotech-Performance.

For such a retro-styled bike, the XSR is swamped with technology as it sits on the ramp at Evotech-Performance in Alford, Lincolnshire.

Mike Evans is carefully passing a 3D scanner over the Yamaha to create a digital model that can be manipulated on computer. The kit looks at geometry, texture and colour by taking thousands of images – it’ll easily see the detail in an M3 bolt, and as Mike scanned the XSR’s engine, even the head gasket’s edge was perfectly rendered.

Article continues below…
Advert

Enjoy everything MSL by reading the monthly magazine, Subscribe here.

I want this project to result in a custom bike that anybody could build – that means no one-off parts, and no string-pulling within the industry. If I do need something fabricating, I want it to be easily accessible to everyone. One of the first mods most people make would be some crash protection and a tail-tidy to lose some of that excess plastic at the rear. As I had one of the first XSRs in the country, Evotech-Performance was eager to get it on the bench and start making parts for the general market.

Some of the parts ready to fit to Cada Día.
Some of the parts ready to fit to Cada Día.

The scans form the templates for designing parts like the bar-end weights, radiator guard, crash bobbins and a tail-tidy. A rapid-prototype machine will ‘print’ models of the parts, and within a few weeks, finished products will be available for sale on Evotech-Performance’s website (www.evotech-performance.com). And it’ll all be made here in the UK.

The XSR700 is in many ways similar to the MT-07 – same engine, same swingarm, and same suspension. The frame is slightly different, not least in that the sub-frame is removable, but for the front and rear axle bobbins, frame protectors and bar-end weights, Evotech-Performance’s current range fits perfectly. Using a textured, injection moulded nylon for the bobbins means they blend well with the black frame of the XSR.

Article continues below…
Advert

Injection moulded parts are contracted out to one of a handful of trusted, UK-based suppliers, but the XSR’s tail tidy will, like the majority of Evotech-Performance’s products, be machined and powder-coated in the onsite workshop; “It’s quite a large project to change the back end on the XSR, in terms of both time and money,” said Chris Vines, one of the partners at Evotech-Performance. “There are many challenges with any parts, but not least a tail tidy, especially in ensuring that the number plate won’t touch the wheel. Some country’s Police forces are quite hot on the angle of the plate – Germany in particular. If it’s too horizontal it can’t be read clearly. But on a bike like this, if it’s too vertical, and pulled back towards the frame, it could clip the wheel under heavy suspension loads – we spend a lot of time getting the measurements just right.”

Evotech’s powder-coated, machined aluminium XSR tail tidy is going to massively improve the looks of the bike. Here the computer-generated model is laid over the 3D scan of my bike.
Evotech’s powder-coated, machined aluminium XSR tail tidy is going to massively improve the looks of the bike. Here the computer-generated model is laid over the 3D scan of my bike.



Engineering solutions

Article continues below…
Advert

Chris and Dan Rack are the men who since the late eighties have been designing and making motorcycle products. In fact, the Alford industrial unit is home to two businesses – Evotech-Performance and Drury-Precision Engineering (www.drury-precision.co.uk). The staff are the same, with Dan and Chris – and relatively new recruit Mike – designing each product for everything from Evotech-Performance’s bike parts to Drury’s gas turbine components, specialist motorhome chassis, high-performance racing brake rotors and whatever else is required.

“We make products for the medical, aerospace, travel and power industries,” said Dan. “Not to mention the automotive side. Last year, the Milwaukee Yamaha team and all the Padgetts race bikes had Evotech-Performance radiator guards. This year TAS, GBMoto, PTR, Tommy Hill and Quay Garage all want them too.

Chris Vines has designed radiator guards for a massive range of bikes.
Chris Vines has designed radiator guards for a massive range of bikes.

“At the moment, I’m working on an ECU mount designed to allow The Milwaukee BMW team to quickly replace the computer hardware from a new position on the bike’s airbox.” At the same time though, Dan could be working on the planning, design and production of a marine GPS housing or a wind-generator.

Article continues below…
Advert

The guys are clearly passionate about bikes, and it’s where Drury-Precision first started in 1970 when Rob Drury built vintage motorcycle parts in his garage. He moved into an industrial unit in the mid eighties, with Dan and Chris working there from leaving school, eventually becoming directors, along with Nick Cooper, who plays a key roll in programming the CNC milling machines.

The consumer parts fitted to so many road bikes came later… “I bought a new Fireblade in 2003, and wanted a tail-tidy,” said Chris. “The shop didn’t have any in stock at the time, so one thing led to another, and I ended up making my own in the workshop here at Drury. I sold a few on eBay, but it escalated, to the point where we started making parts for the SV650, and from there Evotech-Performance was born.

“That first tidy was a simple, bent piece of metal, but now they’re often machined from solid billet, with hidden channels to accommodate the wiring.”

The two Brother mills can go from cutting at 16,000rpm, stop, change and flush tools, then be up to speed cutting again in just 1.9 seconds.
The two Brother mills can go from cutting at 16,000rpm, stop, change and flush tools, then be up to speed cutting again in just 1.9 seconds.

Economy of scale

Let’s follow the process of a typical Evotech-Performance part, like an aluminium radiator guard… Every one is precisely stamped out on a huge computer-controlled machine in the workshop, before moving on to the CNC milling machines.

Next, the flat sheets are given to the skilled operator of an 80ton folding machine, to add the intricate details needed to fit each bike, as well as single or even double curves for race bikes. Evotech-Performance is keen to keep this technique a secret, but from there the rad guards are passed to the massive parts washer, before being hung on the custom-built rail system that takes them through the large powder-coating booth, then on to the oven. Finally, logos are printed in-house, and they’re packed and stored in a monitored stock system, ready for dispatch.

S1000RR rad guards ready for powder coating.
S1000RR rad guards ready for powder coating.

Producing almost everything on-site means the company can react quickly if a new bike is released, or even if, in the case of some manufacturers, certain details of a machine inexplicably change half way through its model year. This has happened with a Triumph recently – a customer called to say that their rad guard wouldn’t fit (calls like this are very rare; check the website’s ‘Trusted Shops’ rating), but as the biker was able to talk to Chris, the designer of the product, it soon became clear that the motorcycle had changed, so production was immediately modified.

The Alford industrial unit is by no means small, but still I thought the levels of efficiency and logistical control were more akin to what I’d expect to see in Honda’s Japanese factory; “Efficiency is there for everyone,” said Dan. “You don’t have to be a massive multinational. It’s a mindset, and the sooner you do it, the sooner you reap the benefits.

“We need to keep up with our orders across both businesses, but the biggest advantage to the investments we’ve made in streamlining is that, as a business, we work far fewer Saturdays now, and never Sundays. Our staff have a life outside of this, and we want them to be happy.”

The immaculate Alford workshop is a benchmark of efficiency – this in-house built racking is just a small part of it.
The immaculate Alford workshop is a benchmark of efficiency – this in-house built racking is just a small part of it.

Retro opportunities

I’m sure Dan won’t mind me saying that he appears to be almost as much of a geek as me, with a real enthusiasm for engineering. He’s worked on – and ridden – hundreds of different bikes, right up to MotoGP machines, but he likes the XSR; “It’s a good-looking machine with lots of potential. It really needs spoked wheels though!”

Chris wasn’t so sure at first; “It’s good, but I think I prefer the Ducati Scrambler – this is a bit busier”. He was clearly won over though – shortly after my visit, Chris told me that Evotech-Performance had bought an XSR to go with its Scrambler for the development of further parts.

Evotech-Performance typically develops for five to six new bikes every year.
Evotech-Performance typically develops for five to six new bikes every year.

We’ve seen personalisation for years with Harley-Davidson, and many of us have swapped cans and screens on our sports bikes. Adventure bikes offer a whole new opportunity for accessories, but it’s the retro sector that’s seeing a big lift. Manufacturers are making it far easier for us to tweak and modify – it makes financial sense from the point of view of parts sales, but also in that the bikes offering the most user-friendly platforms are the ones most likely to be a big success. As I write this, I have the radiator guard, bar-ends, levers and crash protection ready to fit. Chris is prototyping the tail tidy, which could well be available by the time you read this.

The ideas are starting to come together now, and thanks to reader Richard Underdown, who emailed me with some suggestions; he’s right – Cada Día will need hand guards. Next up will most likely be the luggage, which is definitely going to be very stylish looking, but no less practical. From there I’ll have the basic form and I can work out the paint, wheels, bars and details of the bike before I guess I’d better book my ferry to Biarritz…

The completed XSR700 tail tidy looks stunning, with the first production run selling out almost immediately.
The completed XSR700 tail tidy looks stunning, with the first production run selling out almost immediately.
Two vibrating finishers use ceramic and plastic material to de-burr parts, and create a tactile, rounded finish whilst maintaining the crispness of machining.
Two vibrating finishers use ceramic and plastic material to de-burr parts, and create a tactile, rounded finish whilst maintaining the crispness of machining.
Thousands of parts are kept in stock.
Thousands of parts are kept in stock.

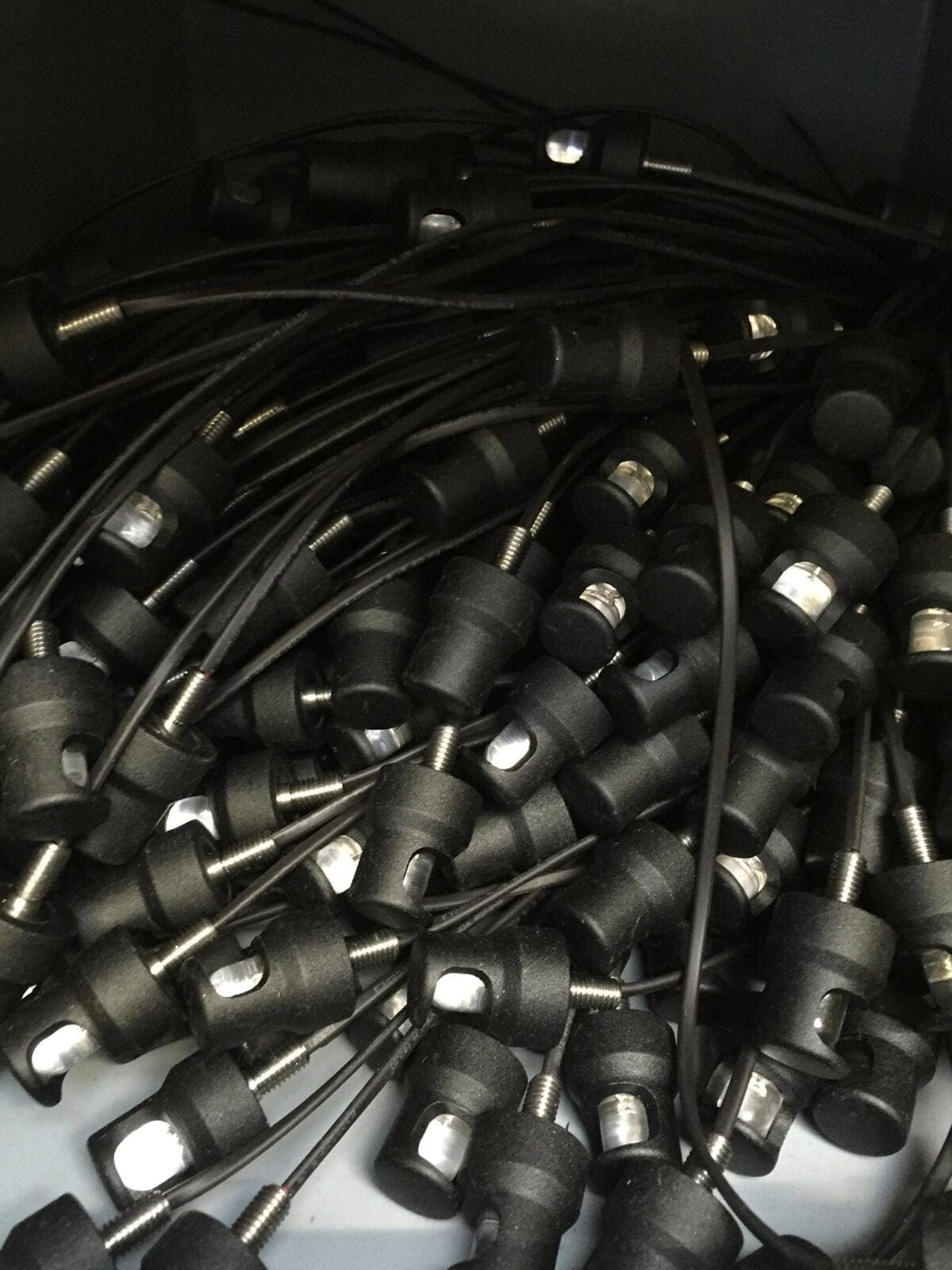

2016-01-06-13-41-17 096_evotech-performance_069 2016-01-06-14-44-19

Material science

096_evotech-performance_088

Design is as much about making things that look great and work perfectly, as it is about planning the production process to be as efficient as possible. Only by understanding each material is that possible – Dan and Chris have both been producing items from raw stock since the early days of Drury Precision and its hand-crafted sheet metal classic bike parts. 3D modelling and prototyping might have changed the way things are designed, but an intimate knowledge of how a material will react is vital. Things get pretty deep here, with values affecting how metals stretch and contract during manufacturing processes, not to mention the difference between ally, steel and the various grades of stainless.





What is Yard Built?

096_eaurouge

Yamaha’s Yard Built project has helped the company to understand the needs of customisers – swapping a headlight is a lot harder if the loom is bundled up inside the back of it. Shortening the subframe is a very popular mod too, but with increasingly tough type-approval legislation on the horizon, making it possible to bolt on custom sections means a machine can easily be returned to standard; “Our mission is basically to produce a bike that can be easily customised by professional people, or in the home garage, but with a strong belief that everything has to be reversible, in case people need to,” Shun Miyazawa, Yamaha Motor Europe’s Product Manager told me.

It’s also an opportunity for custom bike builders to create a catalogue of after-market parts. While Yamaha would of course like you to buy its own accessories, the company understands that to really encourage its customers to make an individual bike, it needs outside businesses to support the factory machines.

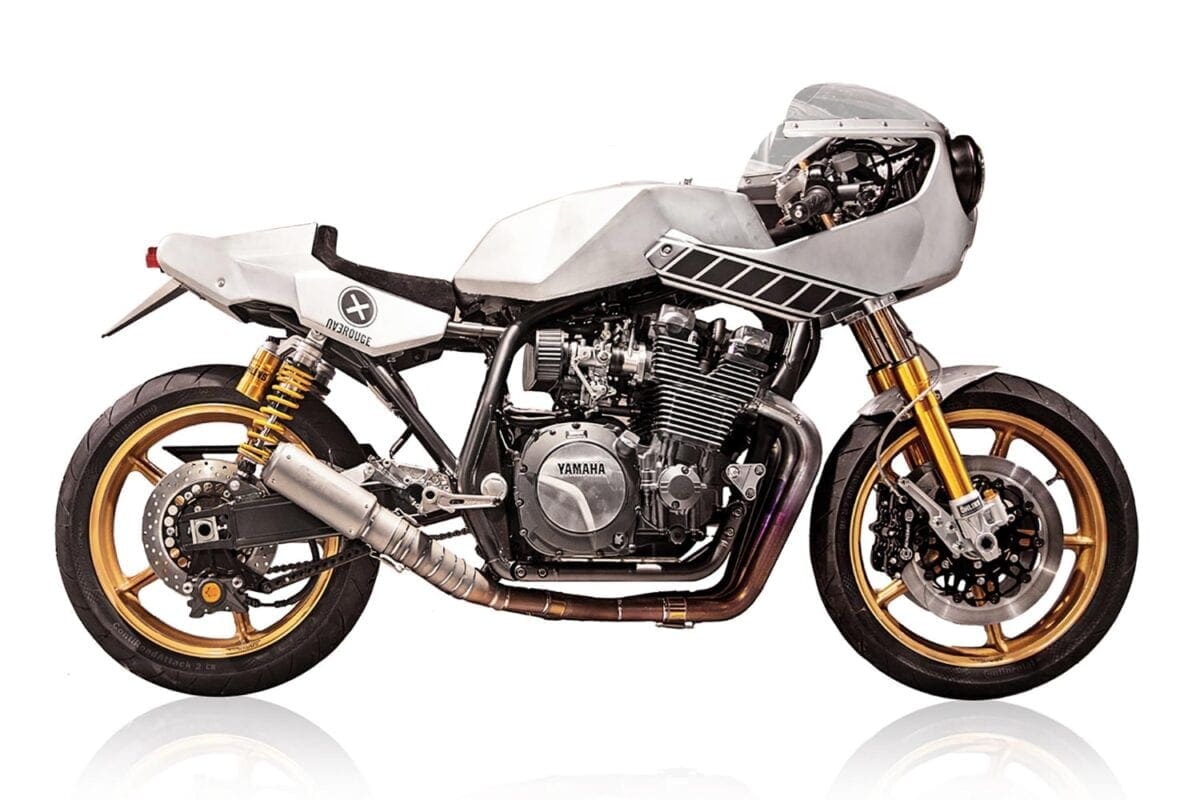

Yard Built can help Yamaha gauge reaction to new product lines too – Eau Rouge (above), Deus Ex Machina Italy’s custom XJR in 2013 effectively ‘softened the blow’ of the XJR1300 Racer, revealed the next year.

Cada Día is my chance to build a custom that’s cool, but practical. My deadline is the beginning of June, when I’ll be riding it to the Wheels & Waves custom festival in Biarritz, then the machine will also be on the Yamaha stand at Motorcycle Live in November.
